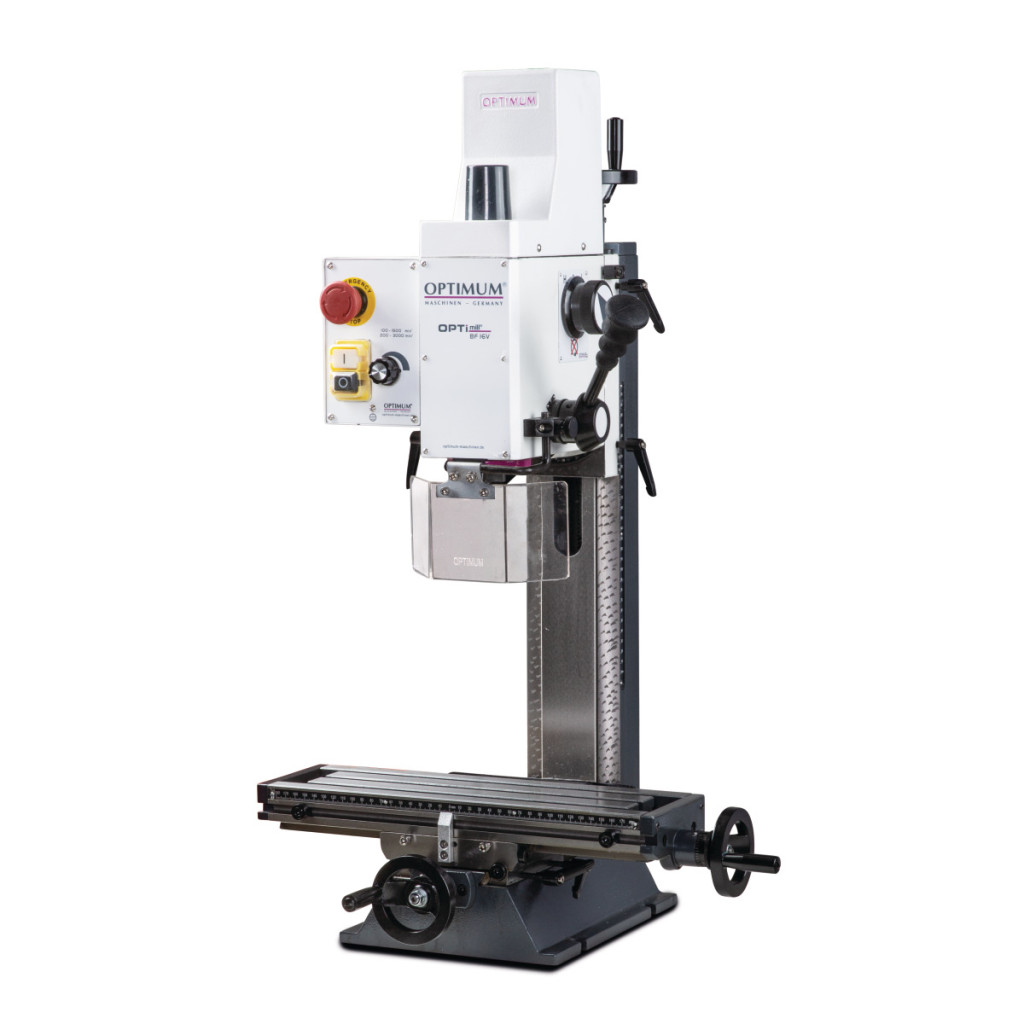

OPTIMUM Quantum BF16 Vario Fúró-marógép

Dimensions and weights
Length 505 mm
Width/depth 465 mm
Height 795 mm
Weight approx. 62 kg
Drilling/milling output
Max. size milling head 52 mm
Max. size shaft milling cutter 20 mm
Drilling performance steel (S235JR) 16 mm
Continuous drilling performance steel (S235JR) 12 mm
Electric Data
Supply voltage 230 V
Phase(s) 1 Ph
Current type AC
Mains frequency 50 Hz
Milling table horizontal
Table length 400 mm
Table width 120 mm
Min. clearance vertical spindle - milling table 0 mm
Max. clearance vertical spindle - milling table 275 mm
T-groove size 10 mm
T-groove number 3
T-groove spacing 35 mm
Standards and certifications
Standard DIN EN 55011
EMC level C1
Travel
X axis manual 220 mm
Y axis manual 160 mm
Z axis manual 210 mm
Vertical spindle
Reach 170 mm
Spindle chuck MT 2 / M10
Speed range 100 – 3000 min¯¹
Number of gears 2
Speed control electronically adjustable
Tightening bar M 10
Vertical spindle normal operation 0.5 kW
Swivel range milling cutter head Z - X plane ± 90 °
Quill stroke 50 mm
